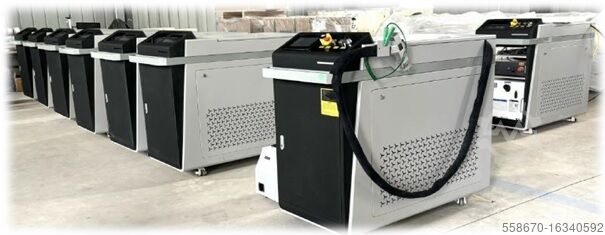

Lasersveisemaskin

SPAWARKA LASEROWA JSW 2000-2kW

Parameter: JSW-2000
Laser power: 2000W
Laser source lifespan: 100,000 hours
Kedpfx Ajtwzxueh Aelu
Laser wavelength: 1064 - 1070nm
Cable: 10m (15m on request)
Operating temperature: -10 - 45℃
Operating humidity: 10 - 90%
Positioning: laser indicator (red dot or line)
Shielding gas: Nitrogen / Argon / Oxygen
Power supply: single-phase 220V 50/60 Hz
Maximum total power consumption: 10.6 KVA / 48.3A
Average power consumption: 6.4 KVA
Device status indication:
status display for water chiller, protective mirror temperature, controller temperature
Welded sheet thickness: 0.5 - 8mm
Maximum gap width: ≤2mm
Laser beam width for cleaning function: 0 - 70mm
Cooling method: water-cooling
Control method: touch panel / monitor and PLC
Wire feeder: fully automated
Device weight: 175kg
Machine dimensions:
Height 800mm,
Width 540mm,
Length 900mm.

Material processing capabilities for JSW 1500W welding function:
Material:
Stainless steel 0.5 - 6mm
Carbon steel 0.5 - 6mm
Galvanized sheet 0.5 - 6mm
Aluminium 0.5 - 5mm

Price includes:
• Selected JSW welding system
• Laser source [MAXPhotonics or Raycus]
• Automated wire feeder
• Work gun with modes:
welding, cleaning, cutting.
• Integrated cooling system
• Touch screen control panel with Polish language menu
• Set of welding nozzles
• Spare protective glasses
• Protective glasses OD6+
• Welding mask OD8+
• 24-month warranty
