CNC turning and milling center – 5 axes – simultaneous

IGREK FR 1000 T

Ref. -No.: 10465
Manufacturer: IGREK
Type: FR 1000 T
Year of construction: 2026
Type of control: CNC-Steuerung
Control: Siemens / Heidenhain
Storage location: Istanbul
Country of origin: Türkiye
X-Travel: 1350 mm
Y-Travel: 1500 mm
Z-Travel: 900 mm
B-Axis: °
C-Axis: 360 °
Spindle Taper: HSK-T100
Turntable diameter: 1000 mm
Table Load: 2000 kg
Tool Piece Magazine With: 48 Pcs./pcs.
Spindle Speed: 15000 RPM
Rapid Travel X/Y/Z: 48 mm / min
Drive Capacity - Spindle Motor: 35 kW
Max Spindle Torque: 220 Nm
Machine length: 3200 mm
Machine width: 6400 mm
Machine Height: 4050 mm
Weight Of The Machine Ca.: 40 t

Further information:

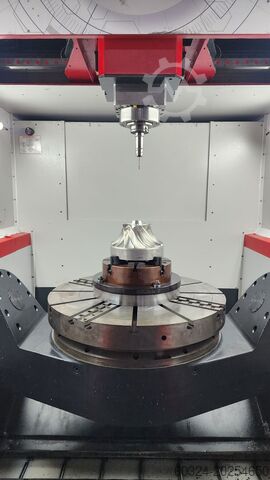

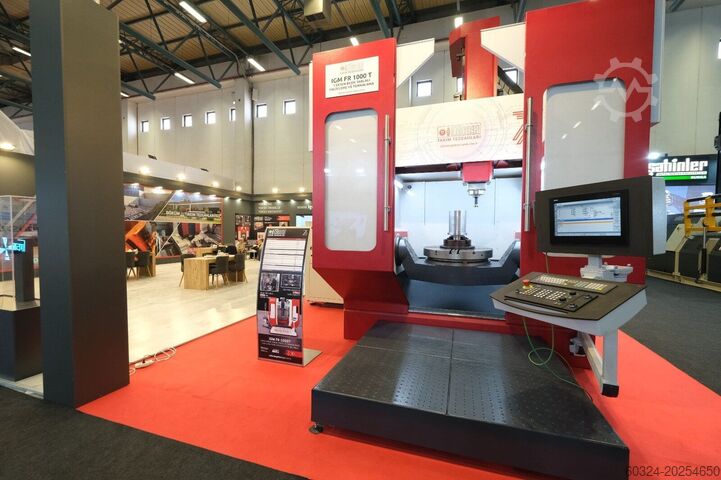

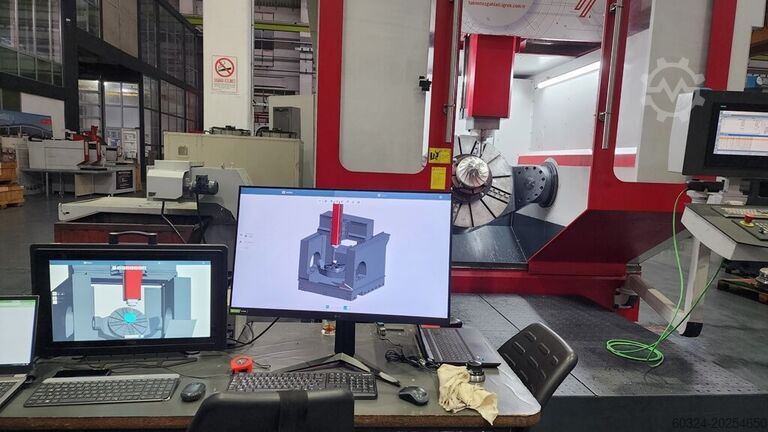

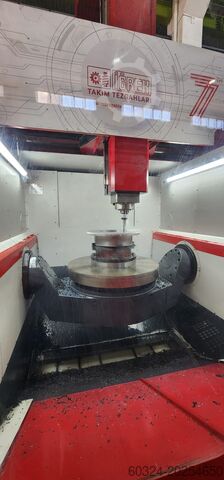

IGREK FR 1000 T – Compact precision for demanding applications

The IGREK FR 1000 T is a CNC turning and milling center with 5-axis simultaneous machining that combines state-of-the-art technology in a compact design. Manufactured in 2024, this machine is ready for immediate use and is ideal for the precise machining of medium-sized workpieces in a wide range of industries.

Key features:

Compact performance: Traverse paths of 1,350 mm (X), 1,500 mm (Y) and 900 mm (Z) and a table load capacity of up to 2,000 kg provide optimal conditions for flexible applications.

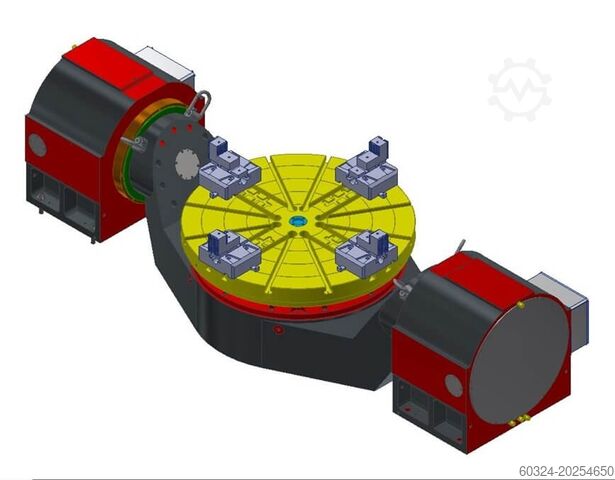

5-axis simultaneous machining: With a B-axis (°/°) and a C-axis (360°), even complex geometries can be precisely machined.
High-performance spindle: The spindle achieves speeds of up to 15,000 rpm, a maximum torque of 220 Nm and a drive power of 35 kW – ideal for demanding milling work.
Extended capacity: A tool magazine with 48 tool spaces and the HSK-T100 holder enable quick changes and efficient processes.
Top speed: Rapid feed speeds of 48 m/min on all axes minimize machining times.

Technical data at a glance:

Bjdpfx Asxmd S Iefhjlp
Traverse paths: X 1,350 mm / Y 1,500 mm / Z 900 mm
Rotary table diameter: 1,000 mm
Max. table load: 2,000 kg
Spindle power: 35 kW
Spindle speed: up to 15,000 rpm
Machine dimensions (LxWxH): 3,200 x 6,400 x 4,050 mm
Weight: approx. 40 tons
Additional advantages:
Thanks to the latest control systems (Siemens or Heidenhain) and a robust machine concept, the IGREK FR 1000 T is suitable for both single-part and series production. The manufacturer offers international service and comprehensive warranties.

Discover the IGREK FR 1000 T as your reliable partner for precise and efficient manufacturing – now available from stock. Contact us for more information!
