Bloch båndsag CTR1000H40 demonstrasjonsmaskin

Pilous CTR1000H40

Demonstration machine

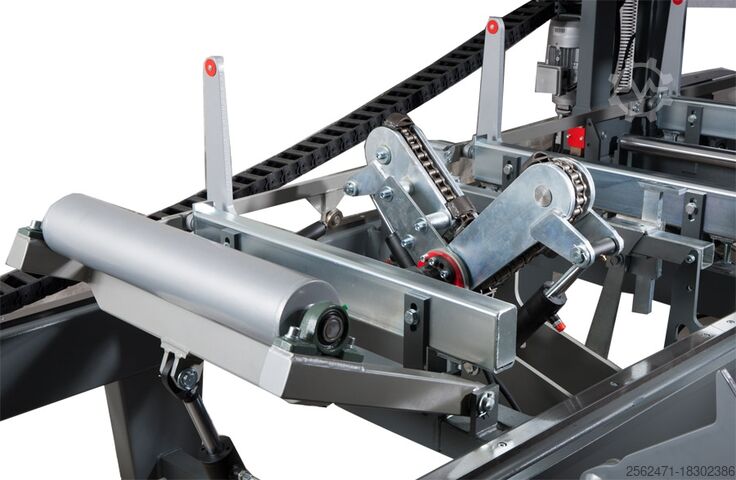

The professional log band saw for a log diameter of up to 100 cm from Forestor Pilous is the further development of decades of sawmill tradition, specially designed for the sawing professional. With telescopic lever log turner, log lifter, log lifter with drive for horizontal log feed. 5 hydraulic angle stops.

2 log clamping tools.

The saw is designed for logs up to 7.6 m as standard and can be extended as required. Automatic feed with stepless speed. Electric height adjustment can be controlled from the operator panel. 8.4 inch LCD touchscreen for height adjustment 2 speeds for height adjustment.
With stationary operator panel. Automatic quick return.
Fpolhcdevrvqwow Nsg
CE tested.

Technical data:

Max. log diameter 1000 mm
Max. board width (panel width) 850 mm
Max. sawblade stroke 875 mm
Min. cutting height 30 mm
Max. frame clearance 450 mm
Cutting length of the basic section 7.6 m
Length of the extension section 3 m
Sawblade drive 15 kW
Motor of the gantry 1.5 kW
Lifting motor 0.55 kW
Motor of the hydraulic unit 5.5 kW
Sawblade dimensions 5350 x 35 ÷ 40 x 0.9 ÷ 1.1 mm
Weight of the basic version 2580 kg
