Avgratningsmaskin

NKO Anfassystem B22 ZERO

Diameter -- mm
Workpiece length -- mm
Workpiece width 0 - 20 mm
Speeds 2850 rpm
Angle range 0 - 60° (stepless)
Nodjppgcvopfx Ag Dowp
Machine weight approx. 19.5 kg

Maximum chamfer width 20 mm + face machining

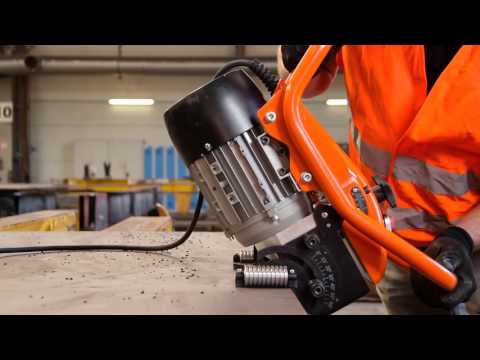

Designed for chamfering and deburring straight edges, including FACING – the removal of unwanted material layers from the workpiece end face, such as burrs resulting from flame cutting on sheet metal. Specially developed for creating visible chamfers and weld seam preparations. Powerful electric drive for heavy-duty applications.

* High-performance motor
* Stepless adjustment of working angle between 0° - 60°
* FACING – edge processing at 0° for removal of unwanted material layers after flame cutting
* Unique mechanical scale for chamfer width adjustment ensures greater precision
* Very compact and ergonomic design for high working productivity
* All-round protective frame for damage prevention and versatile grip options
* With suitable accessories, pipes from D=150 mm can also be processed
* Additional adjustable handle

- Chamfer width (hypotenuse): 0 - 20 mm = 400 MPa / 0 - 16 mm = 400 MPa
- Motor: 1100 W

We are pleased to optionally offer you a pipe beveling attachment (D=150 mm) for this unit.
