Morn MT-6000 laser pipe Cutting Ma

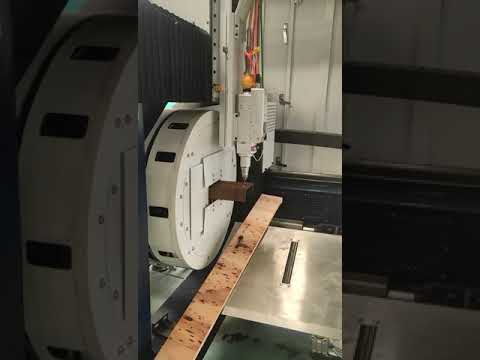

The new MT-6000 laser pipe cutting machine is a device that uses a laser beam to perform precision processing of pipe materials. Laser pipe cutting machine is also known as laser pipe cutting machine, laser pipe cutter.
It is an open-type industrial equipment designed for high-speed and high-quality cutting of round and square pipes and other profiles. The automatic laser pipe cutter can be used in various industries, such as furniture production, automotive, locomotive, aircraft and other areas. The equipment is suitable for medium and large industrial enterprises
Folhcdsvrialew Dspg
Areas of application:
- mechanical engineering
- manufacturing of individual parts
- creation of metal frames
- automotive industry
- aviation industry
- shipbuilding industry
- and others
TECHNICAL CHARACTERISTICS :
HANLI 2000w water cooler
Discharge platform 6m+2m
Movable front chuck
T-WIN rack and guide rail
Shimpo gearbox Germany
Ventilation proportional valve USA Honeywell
Electrical components
Tool box
380V50HZ 3 phases
Maximum laser radiation source 2000 W
Fscut 5000B control system
Ospri LC40SL cutting head
Pipe and tube cutting software
Standard
Accessories
Side frame for cutting tubes with side mounting
Control function
Fuji engine made in Japan
Cantini pneumatic chuck with full stroke 220 mm
Water cooling system HANLI 2000w
Unloading platform 6m + 2m
Movable front chuck
T-WIN rack and guide rail
Shimpo gearbox Germany
Ventilation proportional valve
USA Honeywell Electrical components
Tool box
380V50HZ 3 phases
Can process a wide range of pipe materials. Shapes such as:
channels, angles, tubes, I-beams, etc.
Supports the workpiece to prevent deflection. Clamps a pipe with a diameter of 350 mm.
The weight of the machine is 5000 kg.
Model MT-6000 350 mm 2 chucks with side mounting
Working range 6m length + 2m unloading platform
Maximum cutting pipe length 7m
Laser source max 2000 W
Ospri Autofocus LC40SL laser head
Control system FSCUT 5000B bus system, Tube Pro software
Software for cutting tubes T
Cantini chucks Full stroke pneumatic chuck
Types and sizes of pipes that can be clamped :
Round pipe: diameter 15-350
Square tube: 350 by 350 mm
Load capacity of the chuck 1000 kg
Further support + platform 3 groups of supports + 2m platform
Unloading and receiving wagon 2m
Minimum volume of waste 150mm-300mm
