Plattformtrailer

Max Trailer MAX410 Flatdeck Trailer / MAX410-NZ-5

Colour: Red
Payload: 71,000 kg

Main Features
Manufacturer: MAX
Type: MAX410 Flatdeck Trailer / MAX410-NZ-5
VIN: YAMT45XX9S0110471
Year of manufacture: 2025

Weights / Load Capacity
King pin load: 23,000 kg
Axle load: 5 x 12,000 kg = 60,000 kg
Total axle load: 60,000 kg
Gross vehicle weight (GVW): 83,000 kg
Unladen weight: approx. 12,000 kg

Axles
Axle brand: BPW
1st axle friction steered, 2nd axle fixed, all subsequent axles hydro-mechanically steered
Pneumatic suspension with lift/lower valve
WABCO braking system
Tyres: 445/65 R22.5 | Load index 169K

Dimensions
Overall length: 12,400 mm
Ffedpoxhf U Hefx Abhst
Loading platform width: 2,540 mm
Height: approx. 1,530 mm
King pin height: approx. 1,340–1,400 mm

Additional Information
NATO plug
Lashing rings
Stake pockets
Wheel chocks
Wooden loading floor
Mechanical landing gear
Electro-hydraulic pump for trailer functions
Cable remote control
Rear underrun bumper with lights
King pin 2.0” + additional 3.0″
Central lubrication system with 2 BEKAMAX pumps
Payload: 71,000 kg

= Further Information =

General Information
Year of manufacture: 2025

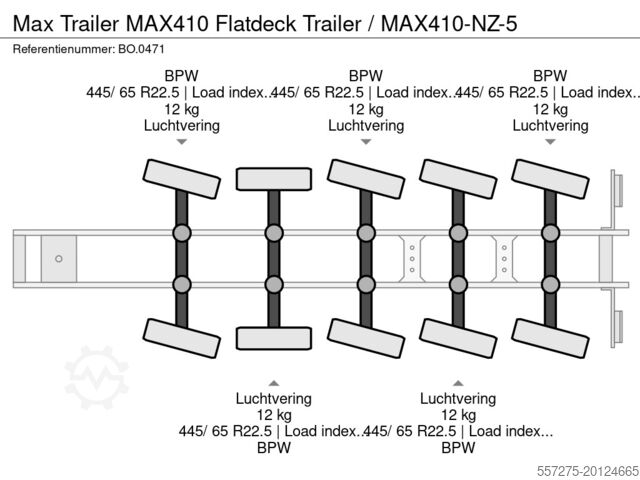

Axle Configuration
Tyre size: 445/65 R22.5 | Load index 169K
Axle brand: BPW
Suspension: Air suspension
Rear axle 1: Max. axle load: 12,000 kg; steering
Rear axle 2: Max. axle load: 12,000 kg
Rear axle 3: Max. axle load: 12,000 kg; steering
Rear axle 4: Max. axle load: 12,000 kg; steering
Rear axle 5: Max. axle load: 12,000 kg; steering

Weights
Unladen weight: 12,000 kg
Payload: 71,000 kg
Gross vehicle weight: 83,000 kg

Condition
Technical condition: good
Optical condition: good

Financial Information
Price: On request

Further Information
Please contact Stefan Schaapveld for more information.
