WIESE Hakenlift- WAK 2-32 SK Sofort Verfügba

Technical Information:

Weights
• Perm. gross vehicle weight: 31,000 kg
• Perm. axle load: 20,000 kg (technical 20,000 kg)
• Fifth wheel load: 11,000 kg
• Unladen weight approx.: 6,800 kg (+/- 5% according to DIN 70020) (depending on equipment)

Dimensions
• Saddle height approx.: 1,150 mm
• Overall width approx.: 2,500 mm
• Overall length approx.: 7,100 mm
• Roller height (device) approx.: 1,500 mm
• Our vehicles are designed and manufactured to meet the highest demands in transport, waste management/landfill, and agricultural applications.
• Thanks to many years of experience, we guarantee you a robust vehicle with long service life.

Steel Frame
• Frame construction in welded steel design, made of longitudinal and cross members using high-quality steel with mounting brackets for the installation of the hooklift system
• 2'' kingpin, bolted and replaceable, 2 positions

Axles/Suspension
• Low-maintenance SAF axles, 2 x 10,000 kg, disc brakes
• Incl. air suspension with lifting and lowering device
• Axle spacing: 1820 mm

Lift Axle
• 1st axle as lift axle with dual-side lift

Braking System

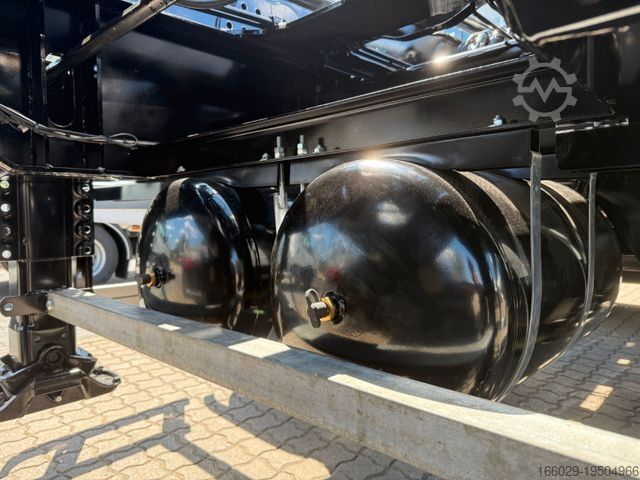

• Load-dependent dual-line air brake system in accordance with directive EC 71/320 (WABCO), automatic load-sensing brake regulator
• EBS electronic braking system

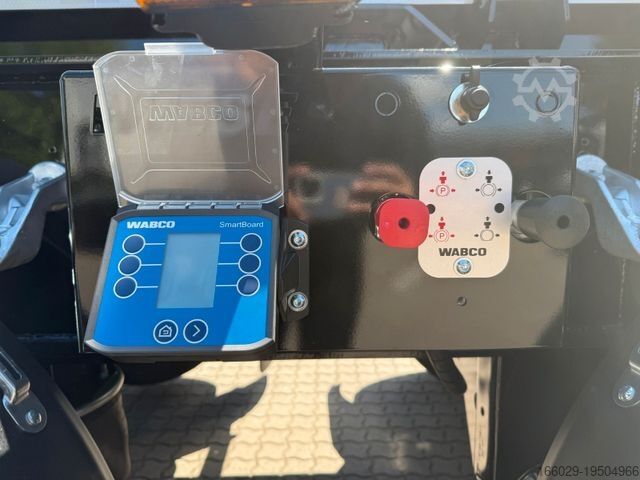

• Smart Board
• Parking brake as spring-loaded type
• Automatic lowering during hydraulic operation
• Supply via Duomatic coupling

Tyres

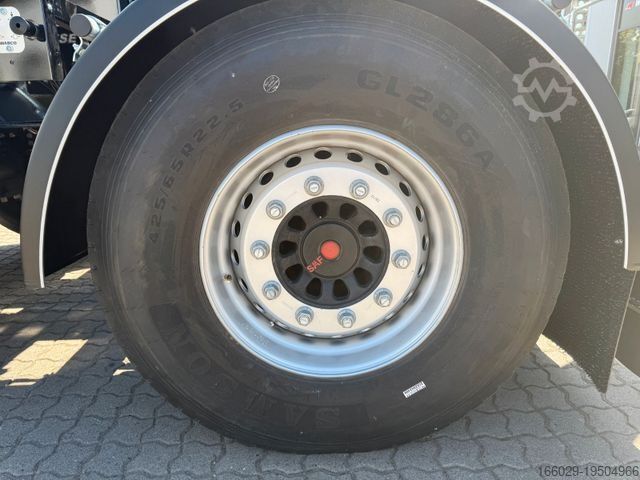

• 4 x 425/65 R 22.5 tyres mounted on 10-hole steel rims, offset 120

Support Legs
• 10 t gearbox support winches with single-side operation, variable speeds

Body
Codpfjwxi Ihox Adyehc

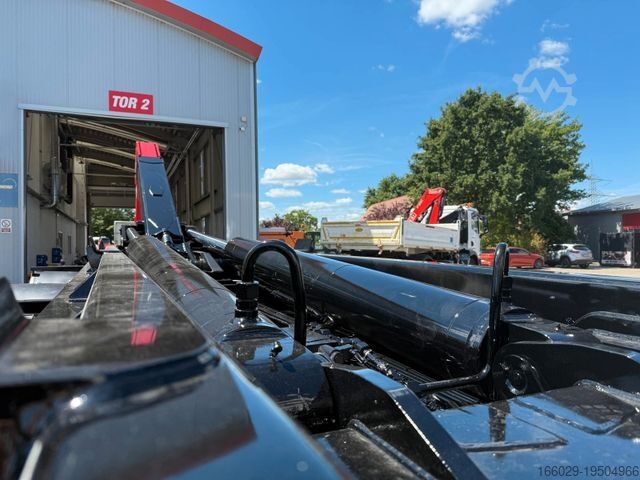

• Hooklift system, telescopic design
• Hook height: 1,570 mm
• Roller height approx.: 1,500 mm
• Container external length approx.: 5,000 mm – 7,000 mm
• Lifting/tilting capacity: 25,000 kg
• Tipping angle: 50 degrees
• Data and dimensions according to DIN 30722
• Working pressure: max. 350 bar
