Automatisk bor runde rør, rektangulære rør

UniBohrFix 100 E

UNIBOHRFIX 100 E Full-Automatic Drilling Machine, Measuring length 6000mm
(2-axis NC Drilling Machine)
Item No. 6019

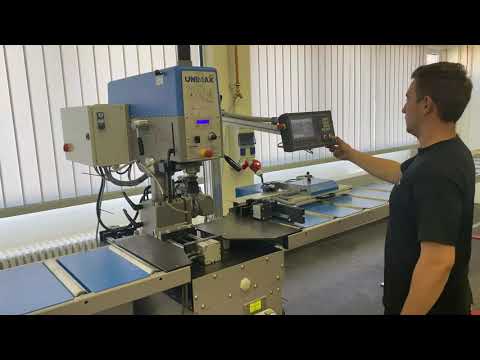

With the fully-automatic drilling machine UniBohrFix 100, your material is positioned on the X-axis at the desired position, clamped, and drilled. You only need to press the start button. The positioner’s horizontal gripper allows for easy pneumatic clamping of round tubes, rectangular tubes, angle profiles, as well as flat and solid materials. After simple entry of the X and Y values or by calling up a saved program, the machine operates completely autonomously.

Advantages
• Sequences of holes are automatically executed at precise intervals.
• Potential operator errors are drastically reduced.
• Programming is completed in just a few minutes.
• Excellent price-performance ratio.
• Significant reduction in labor requirements

Fully automatic execution
Measuring length: 6,000 mm
Overall length: 13,500 mm
NC 2-axis control including LAN interface for data transfer
Pneumatic vice (clamping width 200 mm); optionally available with 300 mm.
Minimum quantity spray unit with holder and spray nozzle

Drilling machine: Unimax 3T AV, alternatively with Unimax 4 Basic
(Technical data see datasheet)
Ijdsfu Irzjpfx Ai Seig
Anti-twist device
Thread cutting device
Motorized height adjustment

NC Positioning system PD 200p
Feed force 200 kg
Positioning by absolute and incremental measurement possible
Carriage with DC servo motor and encoder
Carriage with 12-fold ball bearings
Pneumatic stop clamp with high holding force
Steel guide rail with precision gear rack
Steel carrier profile for contamination protection

Infeed and outfeed material roller track RD-200/4
Length: 6,000 mm / 7,000 mm / Load capacity 200 kg/m / Height-adjustable rollers
Mounting bracket / Roller width 407 mm / Insert plates / Struts
Roller diameter 50 mm / Steel rollers

You are welcome to inspect the desired system at our manufacturing/demonstration facility at any time. Please feel free to contact us for further information.

We look forward to your inquiry!
Plantec Maschinen GmbH
