Dingli JCPT1212AC 12m Scherenbühne 14x vorh.

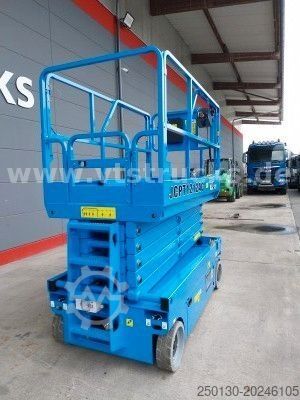

Dingli JCPT1212AC 12m Electric Scissor Lift, Non-Terrain, 14 units available

• Automatic anti-tilt system in undercarriage
• Anti-crush protection
• High ground clearance
• Self-locking platform gate
• Speed limit at maximum height
• Electric steering system
• Drivable at full height
• Platform overload protection
• Automatic brake system
• Non-marking tires
• Tilt indicator with alarm
• Audible lowering alarm and dual LED strobe lights
• Safety bar for maintenance work
• Horn
• Cylinder check valve
• Emergency stop button
• Emergency lowering system
• Drive motor protection
• Tie-down lugs
• On-board diagnostic system
• Hour meter
• Proportional controls
• Folding guardrails
• Power supply on the platform
• Maintenance-free battery
• Motion alarm
• Integrated forklift pockets
• Charging protection system
• Charge indicator
• Lifting and anchor points
• Single-sided platform extension
• 2 drive wheels
• 2 steering wheels
• Manual emergency brake release

Capacity: 408 kg
Max. number of occupants: 2
Working height: 12 m
Platform floor height: 10 m
Overall length: 2.48 m
Overall width: 1.15 m
Overall height (rails up): 2.49 m
Transport height (rails down): 1.96 m
Platform length: 2.27 m
Platform width: 1.12 m
Platform extension: 0.90 m
Ground clearance (stowed): 10 cm
Ground clearance (raised): 1.9 cm
Wheelbase: 1.87 m
Outside turning radius: 2.10 m
Drive motors: 2x15VAC/0.87 kW
Travel speed (stowed): 6 km/h
Travel speed (raised): 0.80 km/h
Dkjdpfx Aaoxl Nw Hjtju
Integrated charger: 24V/30A
Gradeability: 25%
Max. working slope: 1.5°/3°
Non-marking tires: 381×127 mm

Errors and prior sale excepted.
Internal vehicle number: R83
