Industrial Drive Shaft Balancing Machine

97VK1000

The 97VK1000 balancing machine is a high-tech equipment designed for service and repair companies specializing in the maintenance of industrial drive shafts weighing up to 1000 kg.

It provides accurate and efficient balancing of cardan shafts, reducing repair time and ensuring high productivity of work processes.

The 97VK1000 balancing machine is the perfect combination of high technology, reliability and versatility, making it an essential tool for engineers and technicians involved in the maintenance and repair of industrial cardan shafts.


HIGHLIGHTS
1. Hard-Bearing Design: Designed with high precision and reliability in mind, the 97VK1000 balancing machine features a hard-bearing design to balance shafts with large initial imbalances.

2. Universal Design and Equipment: The 97VK1000 is equipped with universal equipment to balance shafts with flanges of various shapes and sizes. Special plates and adapters allow cardan lengths up to 6000 mm and flange diameters up to 500 mm.

3. Fast and Efficient Balancing Process: Thanks to the short unbalance measurement cycle, the 97VK1000 provides fast and accurate adjustment, which reduces repair time and increases the productivity of service and maintenance operations.

4. Safety and Ease of Operation: Screw jacks provide comfort and safety when working on the machine, the asynchronous variable frequency drive allows infinitely variable speed control without stopping the motor, providing optimal modes for balancing.

Cjdpfx Alewc T Utj Dehd

MEASUREMENT AND CONTROL
• We make balancing easier - the main advantage of our balancing systems.

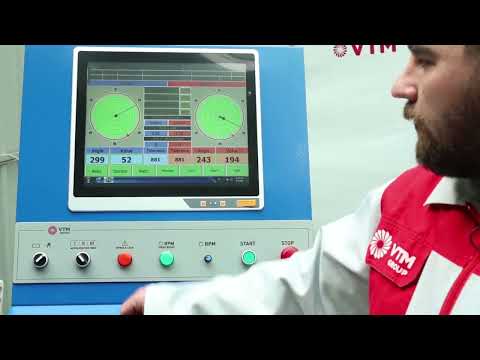

• The balancing process is displayed in real time and the unbalance behaviour of the rotor is monitored on the screen to achieve the best possible result.
• The maximum sensitivity of the machine at any moment of operation, the set-up and calibration of the machine is carried out by the operator himself.
• Free from the influence of external vibration factors on the measurement result, it has a high degree of protection against various types of interference.
• Easy to learn working skills and maintenance for any employee.


SPECIFICATIONS
Weight range of balanced shafts 50 - 1000 kg
Maximum tube diameter 300 mm
Maximum flange diameter 500 mm
Maximum drive shaft length 6000 mm
Minimum achievable residual specific unbalance 10 g*mm/kg
Rotor rotation speed 300 – 1000 rpm
Electric motor power 11 kW
Parameters of the supply network 380V, 3 Ph, 50Hz


Do you repair industrial drive shafts?
Then we can additionally offer an Assembly-Welding Workbench for heavy shafts.
Please contact us to get the best offer!
👇
