KURT EHEMANN V K8

Disc sander with spindle sander KURT EHEMANN Type V K8
Combined drum sanding machine - double-ended grinding machine, dowel rod sanding machine
Machine No. 6812420 Year of manufacture 1968
Sanding disc diameter: 800 mm
Table support at sanding disc: 900 x 300 mm
Sanding disc speed: 940 rpm
Table height, sanding disc: 900 mm

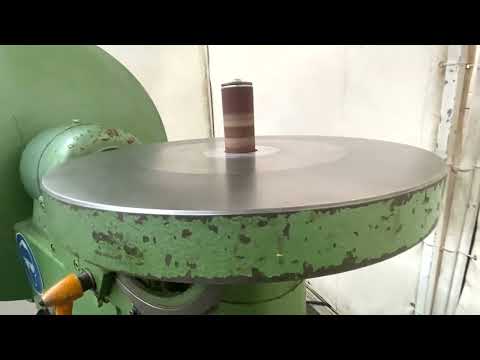

Spindle sanding unit with sanding sleeve Ø 50 mm
Table support, spindle sanding unit: Ø 500 mm
Table height, spindle sanding unit: 1000 mm
Spindle sanding unit speed: 1410 / 2420 rpm, pole-changeable
Motor power, sanding disc: 3 kW
Motor power, spindle sanding unit: 1.1 / 1.6 kW
Mains connection: 380 Volt, 50 Hz
- Tiltable sanding disc table, 30° downward / 15° upward
- Entire table can be swung away from the disc for abrasive change
- Spindle sanding unit with forward and reverse running (1410 rpm forward, 2420 rpm reverse)
- Spindle sanding unit with oscillating stroke movement, 10 mm
- Sanding spindle height-adjustable in table
- Spindle sanding unit with tiltable round table, tilt approx. 30°
- Round table with removable segment inserts Ø 54 / 84 / 308 mm
- Duct connection for extraction unit, rectangular 100 x 170 mm
Space requirement L x W x H: 1500 x 1100 x 1400 mm
Weight: 550 kg
Very good condition
