Heavy-duty transport chassis - rental

JUNG LAe 15/30 G (bis 30 t)

JUNG JLA 15/30 G Heavy-Duty Transport System
Up to 30 tons
Professional heavy-duty transport system for moving machinery up to 30 tons.

A professional JUNG heavy-duty transport system is available for rent
for the movement, installation, and relocation of heavy machinery and equipment.

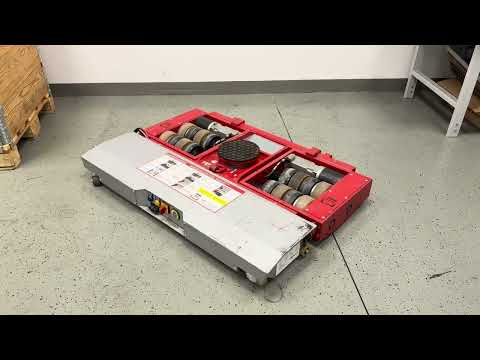

The system consists of an electrically powered heavy-duty transport system
JUNG JLA 15/30 G and two rigid heavy-duty transport systems JUNG FB 15 G. The
electric transport system has a load capacity of 15 tons. In combination with the two
rigid heavy-duty transport systems, the complete system is designed for a total
load capacity of up to 30 tons.

Application areas
• Machinery relocation
• Production line relocation
• Installation and removal of machine tools
• Presses and injection molding machines
• CNC machining centers
• Transformers and switchgear cabinets
• Industrial plants and special machines

Scope of delivery
• 1 electric heavy-duty transport system JUNG JLA 15/30 G
• 2 rigid heavy-duty transport systems JUNG FB 15 G
• 2 foldable transport beams (working length approx. 2,400 mm)
• 4 hydraulic machine jacks JUNG JH 10 G plus (10 t)
• 4 pump levers
• Tele Radio remote control with carrying strap
• 2 spare batteries for remote control
• Charger for remote control
• Drive battery 48 V / 60 Ah
• Battery charger 48 V / 50 A
• 12 load distribution plates
• 2 wire rope lifting slings
• Crowbar

Transport data
Package 1: Wooden crate with accessories (1,200 × 800 × 1,150 mm), approx. 380 kg.
Package 2: Pallet with electric transport system incl. drive battery (1,200 × 1,200 × 400
mm), approx. 350 kg.
Bwedpozi Dhujfx Ailsw
Total weight: approx. 730 kg.

Rental conditions
• Rental exclusively to commercial customers.
• Return in complete and cleaned condition.
• Missing or damaged parts will be charged at the replacement cost.
• The lessee is liable for loss and damage during the rental period.
• Operation exclusively by qualified personnel.

• Manufacturer: JUNG Hebe- und Transporttechnik GmbH
• Type: JLA-e 15/30 G (without lifting function)
• Year of construction: 2017
• Electric transport system: 15 t load capacity
• Total system: up to 30 t total load capacity
• Control: Tele Radio remote control
• Drive battery: LiFeMnPO₄, 48 V, 60 Ah, 2.88 kWh
• Charger: AXIMA FLEXIS 48 V / 50 A
Electric drive system
• Dimensions: approx. 1,215 × 835 mm
• Height: 180 mm
• Weight: approx. 198 kg (without battery)
• Travel speed: 6.5 m/min
• 16 polyurethane rollers Ø 140 × 59 mm
• Turntable support Ø 215 mm
Rigid transport system JFB 15 G
• Load capacity: 15,000 kg
• Height: 180 mm
• Transport system cassette: 460 × 205 mm
• Support area: 220 × 120 mm
• Adjustment range: 415–1,300 mm
• Weight: approx. 68 kg
