Kroklastebil

HIAB Ultima 26S59 Abrollanlage, Funk

Vehicle location: Bovenden, hydr. Cross locking, radio remote control

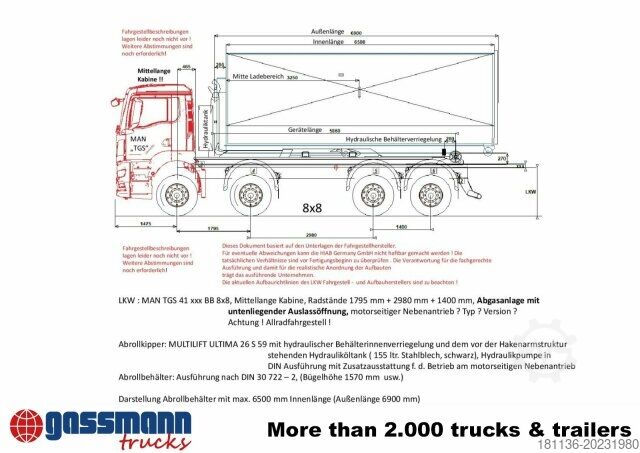

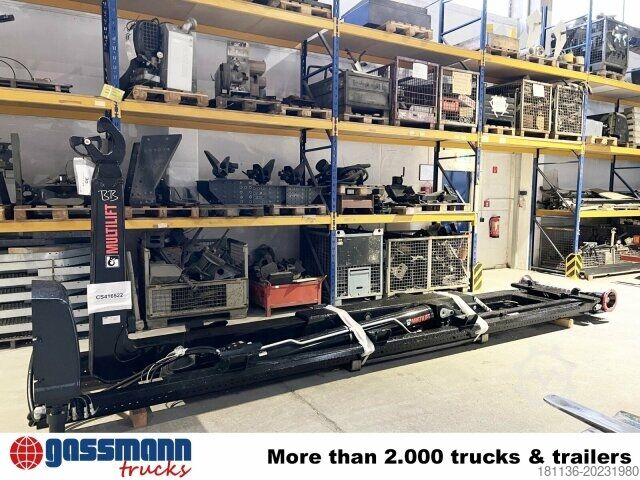

Structure: 26t roll-off system Hiab Multilift Ultima 26S59 for containers from 5.25m to 6.75m with radio control Fully hydraulic MULTILIFT swap body system (roll-off tipper) in accordance with the EU Machinery Directive with CE certificate for containers in accordance with DIN 30722

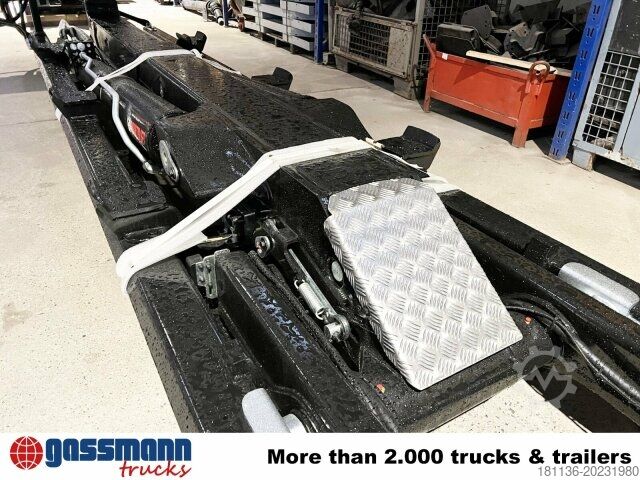

Basic device consisting of:
- Universal mounting frame made of Z-profiles, screwable onto the truck frame
- Rear tipping frame with container locking
- Front tipping frame with tipping cylinders
- Telescopic arm with telescopic cylinder
- Mechanical locking between front and rear tipping frame
Hydraulic system consisting of:
- Double-acting cylinders with load holding valves and hose rupture protection function directly on the cylinders - Device control via compact control panel with CAN bus cable, integrated monitoring lights and electromagnetic valve control (PLC control) with two-stage switching (fine speed/fast speed) in both directions for the lifting cylinders
- tipping frame end position damping for easy placement of the container on the vehicle
- CE safety package
- tipper display
Crjdpoxlq Hpsfx Ah Doh
- device completely painted
- 2nd generation cabin control (FLEX and PRO)
Device length: 5900mm (G-dimension)
Hook height: 1570mm ACCESSORIES INFORMATION WITHOUT GUARANTEE, subject to changes, prior sale and errors!

- .
