Skapbil

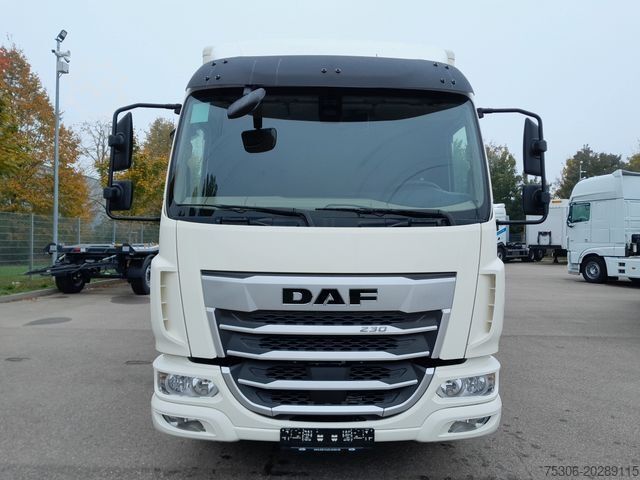

DAF FA XB 230 12t

FA XB 230 12t

Gksdpfoxngw Nex Acvec
12t distributor, extended day cab, air intake on top
Cab suspension mechanically reinforced
Extended Day Cab
Central locking, 3 keys, 2 remote controls
Exterior sun visor, green translucent
Fog lights and cornering/turning lights
Halogen headlights
Daytime running lights
Green tinted windows
Electrically adjustable mirrors
Front view mirror

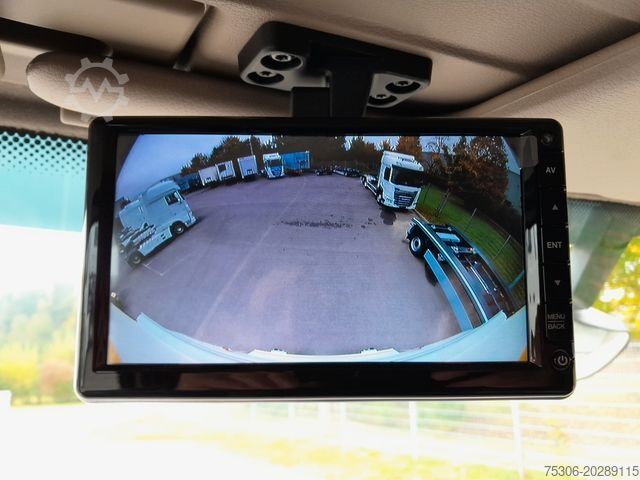

Reversing camera
Adjustable roof spoiler
Pneumatic steering column lock
Roof hatch with manual operation
Driver seat: luxury air-suspended seat
Driver seat armrest
ECAS remote control
24 V to 12 V converter, 15 A, 180 W
Soft-touch steering wheel, color black
Black seat belts
Passenger seat: fixed, velour
Engine tunnel storage compartment
Air conditioning
Electric windows
Digital tachograph, VDO 1C, Version G2V2
Adaptive cruise control with FCW and AEBS-3
Toll system preparation
Speed limiter setting 85 km/h
PACCAR Connect
Antennas: AM/FM + GSM + GPS
FMS interface, prepared
FM/DAB/DAB+ radio with speakers incl. phone connection
Driver Performance Assistant
Lane change warning system
Electronic stability control (VSC)
Reverse warning system
Hill start assist
DAF Side and Turn Assist
Alcohol interlock, prepared
Speed limit recognition
DAF Drowsiness Detection
Compliant with UN regulations R155 and R156
Rear: 8.50 t, air suspension, SR8.14
Front: 4.50 t, parabolic, 45N
Front axle 1: 4,480 kg, load index 136
Rear axle 1: 8,480 kg, load index 134
Goodyear
Tire pressure monitoring system
Front axle(s): 245/70R17.5
Driven rear axle(s): 245/70R17.5
F1,245/70R17.5GO KMAXS2 136/134 M Steering CCA 3P
R1,245/70R17.5GO KMAXD2 136/134 M Traction CCA 3P
Rear axle ratio 3.73
Mechanical differential lock
8-speed PowerLine 8AP1000 overdrive transmission, 4.89-0.64
Engine PX-7, 167 kW/227 HP, cab badge: 230
Emissions class Euro 6
Traction control system (ASR)
Idle shutdown, 5 minutes
Automatic transmission PowerLine, 8-speed
Parking brake with test position
Exhaust brake

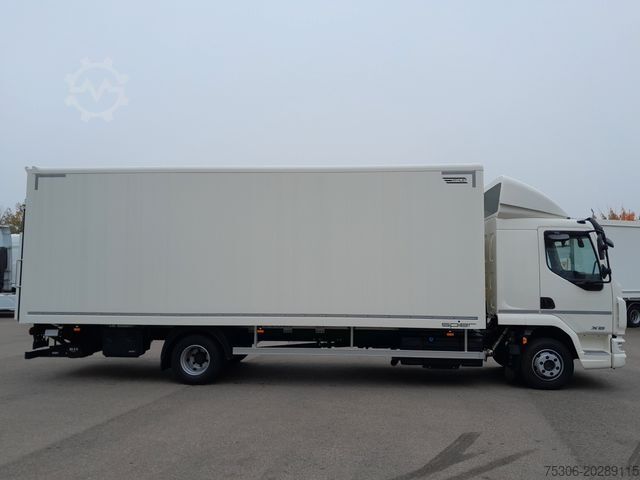

Wheelbase 5.40 m / rear overhang 2.43 m
Plastic fuel tank, 185 l
Front underrun protection
AdBlue® tank 30 l, right side of chassis
Battery box left
Longitudinal members 210/6.0 mm, no inner reinforcement
EAS unit right, outlet rearwards on right
Suitable for use with drawbar, type plate, up to max. GCW
Pneumatic trailer connection, turntable coupling
Cross member D85-Dc70-V25, coupling D85, mounted
Trailer electrical connection + EBS, 24V/2x7-pin
Body mounting BAM 1, loose brackets
Plug connection for fixed engine speed control on chassis
Body connector on chassis
Side marker lights

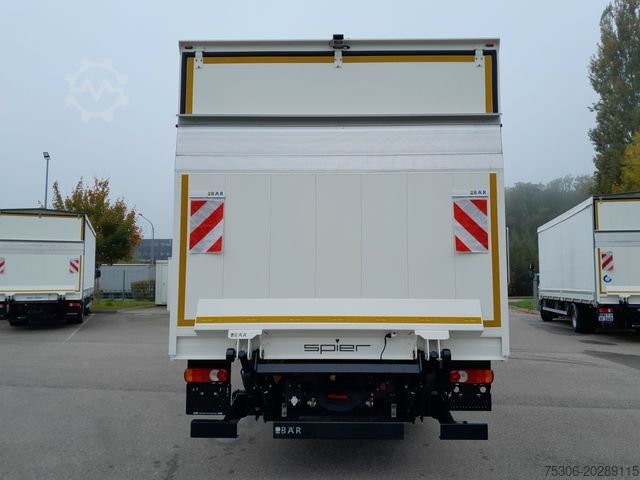

Tail lift application
Alternator 100 A, batteries 2 x 175 Ah
Max. gross combination weight for drive system 20,000 kg
Technically permissible chassis weight max. 11,990 kg
Air intake on top behind cab
Water separator, heated
Driveline Warranty Plus - 3 years/200,000 km
ITS Service

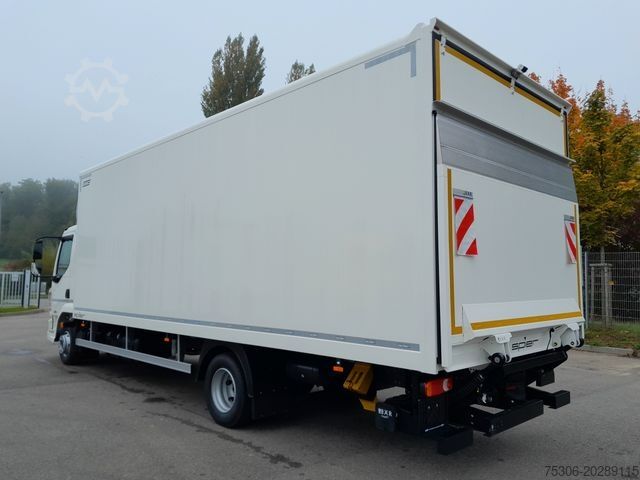

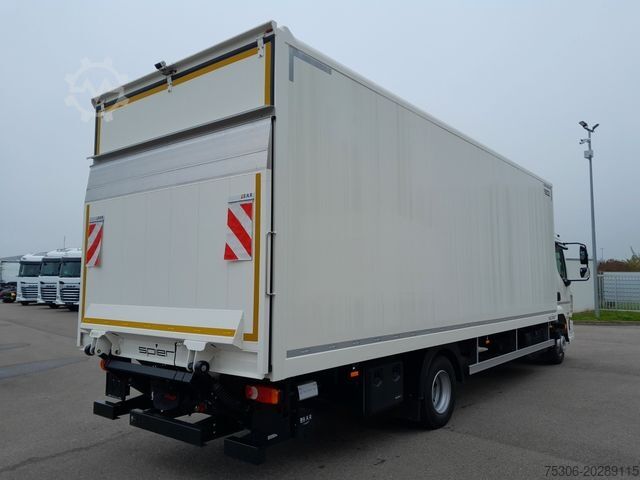

Body: Spier box body
Internal length: 7,200 mm
Internal width: 2,496 mm
Internal height: 2,369 mm
Portal opening width: 2,470 mm
Portal opening height: 2,310 mm
Body unladen weight without additional equipment: 1,560 kg
Number of pallet spaces: 17

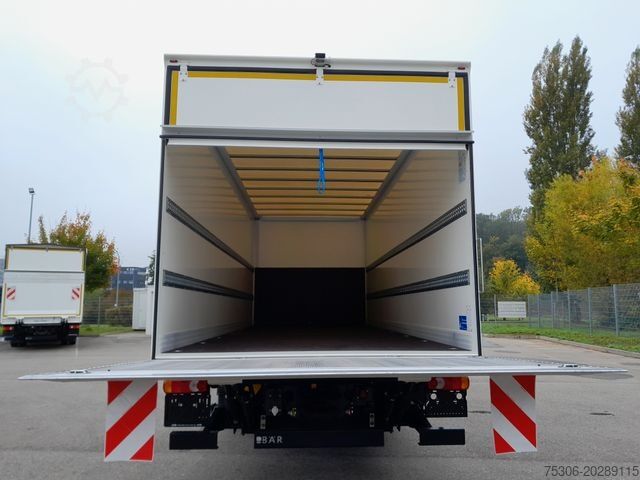

Galvanized steel rear frame, open rear portal, upper tailgate with gas strut
Subframe as steel construction, crossmember spacing 500 mm

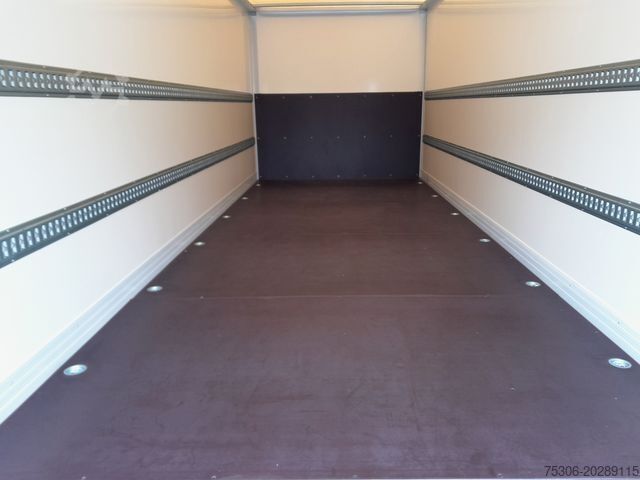

Floor approx. 24 mm thick, made of special panels, multiple bonded and film-coated on both sides, surface phenolic film (anti-slip). Permissible wheel load: 1,700 kg for wheel size of industrial truck or roll container at least 180 x
