Sveiseposisjon

CORMAK PS-360

CORMAK PS-360 Welding Positioner

The CORMAK PS-360 welding positioner is a high-quality rotary positioner designed for professional industrial applications. Developed with ergonomics, efficiency, and precision in mind, it is an essential support tool for welding and assembly of cylindrical components, pipes, and parts with complex geometries.

It enables efficient manipulation of workpieces, allowing welding in the optimal position, which significantly improves weld quality and operator working conditions.

Main advantages of the machine
Professional welding positioner with adjustable rotation speed and tilting function of the working table.
High load capacity: up to 100 kg in horizontal position and 50 kg in vertical position.
Smooth rotation speed adjustment: from 0.2 to 5 rpm, suitable for precise TIG and MIG/MAG welding processes.
Chsdjrigl Uepfx Anksa
Compact design: ideal for workshops, production lines, and automated welding stations.

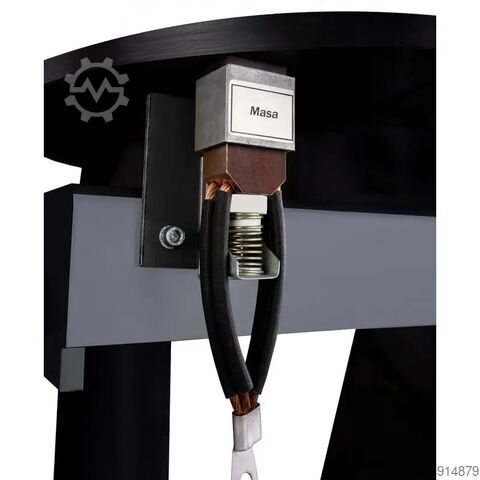

Ground connection slot: ensures a continuous electrical connection without the need to change the ground connection after each rotation.
Design and technology

The PS-360 welding positioner has been designed for intensive industrial operation. The robust steel frame ensures excellent stability and rigidity, while the manual tilting mechanism allows the working table to be positioned at an angle of up to 90°.

A 120 W motor provides sufficient torque for handling heavy cylindrical and tubular components. The control system consists of a control panel and foot pedal, allowing the operator to maintain full control over the welding process.

Precision and work efficiency

Using the CORMAK PS-360 positioner significantly improves weld accuracy and repeatability. Welding in a fixed, ergonomic position reduces the risk of operator errors and eliminates the need for frequent repositioning of components.

Smooth speed adjustment allows the rotation speed to be matched to the specific application, making the PS-360 an excellent solution for both precise TIG welding and more dynamic MIG/MAG welding processes.

Applications

The PS-360 welding positioner is used in a wide range of industrial production and assembly processes:

Welding of pipes, flanges, shafts, and cylindrical components
Production and repair facilities – welding and assembly lines
Welding, painting, and mechanical industries
Robotic and automated welding stations
Standard equipment
CORMAK PS-360 welding positioner
Foot control pedal
Power cable
Welding torch holder mast
User manual
Optional equipment
Self-centering three-jaw chuck WP200
Self-centering three-jaw chuck WP300
Technical specifications
Parameter Value
Horizontal load capacity 100 kg
Vertical load capacity 50 kg
Working table diameter Ø360 mm
Tilting angle 0° ~ +90°
Rotation speed 0.2 ~ 5 rpm
Motor power 120 W
Tilting adjustment Manual
Voltage 220 V – 1PH – 50 Hz
Dimensions 530 × 550 × 500 mm
Weight 49 kg

Note: The three-jaw chuck is not included in the standard package.
