Lang beltemaskin

Aceti ART. 143

Immediately available!!
Different sizes and machine combinations available!
Contact us - we will be happy to advise you!

Machining of containers, boxes and welded constructions, especially the grinding of welded edges, visible surfaces and corners are among the common applications on our Aceti long belt grinding machines.

For grinding and satin finishing
For machining visible surfaces
On containers, boxes and welded structures
Welded edges and corners
For machining compact and light components

Features of the Aceti long belt grinding machine ART. 143:
For surface machining with the sanding pad as well as the sanding roller
Suitable for abrasive and non-woven belts
Belt dimension: 120 x 4000 mm
Three-phase motor: 400 V 1,5 kW
Speed: 1400 / 2800 rpm
Cutting speed: 11 / 22 m/s
grinding table: 1500 x 550 mm
Nelhok Ttldeccqpswd
max. workpiece dimensions: 1500 x 550 x 560 mm
max. workpiece weight: 50 Kg
suction nozzle: Ø120 mm

Extremely compact design - unique construction
grinding table suspended on a column - space-saving and easy to move
The surface of the grinding table is covered with PVC strips
Grinding table is electrically adjustable in height and can be guided by hand

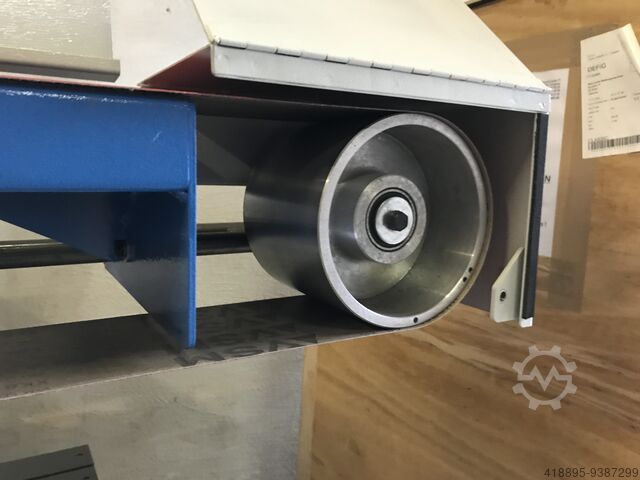

Belt drive via aluminum contact roller
Belt tension via spindle drive
Belt run adjustable via guide roller
Quick belt change by swinging off the spark boxes

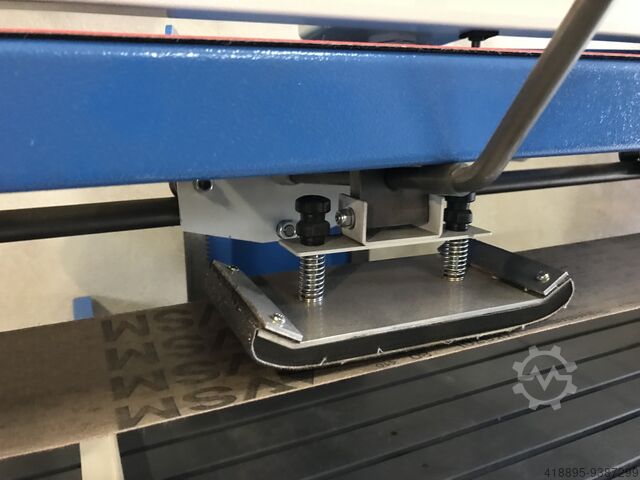

Grinding shoe spring-loaded and coated with graphite
Stop angle for component positioning
Powerful and low-vibration three-phase motor
Motor suitable for continuous operation
Large bearings guarantee smooth running with low noise level
Stable machine frame on three rubberized feet

Scope of delivery:
Sanding belt in zircon corundum quality
High-quality tool set and wall plug
German operating instructions and CE declaration of conformity

Optionally available with inverter for infinitely variable speed control
